AS4373 - Testing Aerospace Cables - Part 1

January 10, 2017 · Michael Traskos

When testing aerospace wire, there are several test standards that might be considered; however, the one that is most commonly referenced is the SAE AS4373 “Test Methods for Insulated Electric Wire” which covers a wide range of mechanical, electrical, environmental, and workmanship tests. In this first article of a two part series, we describe the tests that are included in the method and how they can be used to determine wire performance.

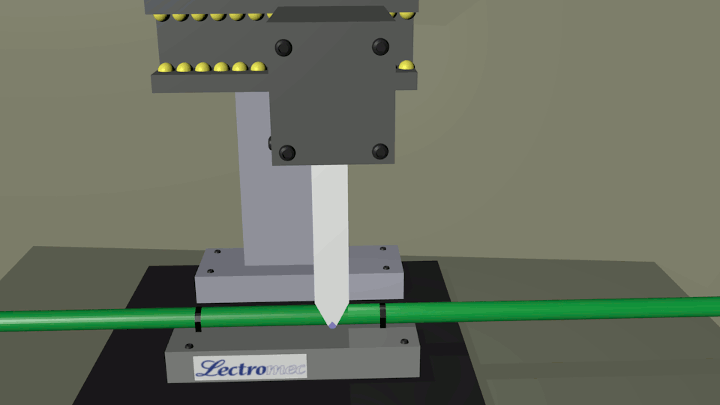

EWIS reassessment will be necessary to ensure reliable system performance. — Tight controls on every test are important, but there are some, like the scrape abrasion, where slight changes can have a large impact. Many of the AS4373 tests share this commonality.

This is the first article in this series, the next article will be published the last week of January 2017.

Mechanical

Wires undergo a variety of mechanical stresses, which are dependent upon their installed application. To determine their performance, one or more of the following test methods should be considered for performance evaluations. The following is a listing of the AS4373 mechanical tests that stress the insulation, conductor, or both.

Test Method	Test Name	Short Description
301	Needle Abrasion Test	The specimen is placed under an oscillating jig simulating abrasion across a surface.
702	Cold Bend	The specimen is slowly wrapped around a mandrel at extremely cold temperatures. If no insulation cracks are found, then the specimen has passed.
703	Dynamic Cut Through	A blunt edge is pressed into the specimen until the insulation is breached. May be performed at ambient or elevated temperatures.
704	Flex Life	The specimen is flexed until the conductor is broken. Important for high flex applications.
705	Insulation Tensile Strength and Elongation	The insulation is removed from the specimen and pulled until broken.
706	Notch Propagation	A small cut is made in the insulation and the specimen is flexed. If the notch propagates to the conductor, the specimen has failed.
707	Stiffness and Springback	The specimen is flexed and the flex memory is measured. Important metric to determine workability.
708	Mandrel and Wrapback Test	The specimen is wrapped on itself and heated. Any insulation crack constitutes a failure.
709	Wrinkle Test	Wrap the specimen and look for wrinkles in insulation. Particular application to tape wrapped constructions.
710	Durability of Wire Manufacturer's Color/Identification	Similar to Method 301, but examining the durability of wire marking.
711	Durability of Wire Installer's Identification	The specimen is exposed to mechanical, thermal, chemical, and environmental stresses to determine mark durability.
712	Bend Test	This test is typically used in coordination with other tests to mechanically stress a sample after environmental/thermal exposure tests.
713	Circumferential Insulation Elongation	The insulation is extracted from the specimen and expanded outward. Used to quantify insulation performance under radial stresses.
714	Wrap, (Mandrel Wrap)	Similar to Method 712.

Electrical

Wires are designed to transfer electrical energy from end to end. Electrical tests are conducted to evaluate the wire’s capability to perform this basic function. The following tests are electrical tests that, for the most part, assess the electrical performance of the wire insulation.

One item to note here is that the following test methods do not cover anything that is related to signal integrity. Other standards, such as the AS6070 (*double check) is designed for signal application evaluation.

Test Method	Test Name	Short Description
501	Dielectric Constant	The capacitance per unit length of the wire is measured. (Article)
502	Corona Inception and Extinction Voltages	The specimen is wrapped around a grounded mandrel and the applied voltage is slowly increased until corona is detected (corona inception). The voltage is then lowered to find the extinction voltage. Useful to determine voltage rating.
503	Impulse Dielectric	The specimen is subjected to a high voltage pulse. No insulation breaches shall be detected.
504	Insulation Resistance	Also known as ‘volume resistance’, this measures the insulation resistance. Important for high impedance circuits.
505	Spark Test of Finished Wire Insulation	Assembly line style test where a high voltage is applied to the specimen as it is pulled through a grounded chainmail. Good for finding insulation breaches in spools of wire.
506	Surface Resistance	For most applications, the surface resistance of wire should be as non-conductive as possible.
507	Time/Current to Smoke	An electrical current is stepwise increased on a sample until smoke is visually detected.
508	Dry Arc Propagation Resistance	Mechanical abrasion of the specimen initiates an electrical fault to determine arc track resistance/propagation.
509	Wet Arc Propagation Resistance	A fluid is dropped on a pre-damaged specimen to initiate an electrical fault to determine arc track resistance/propagation.
510	Voltage Withstand (Wet Dielectric)	Most often used in combination with other tests. This test applies a high voltage to find insulation breaches.
511	Wire Fusing Time	A high current is placed on the wire to determine time to fusing (separation of conductor).
512	Voltage Rating	Still not defined. See here for a discussion on voltage ratings.
513	Smoke Resistance	Apply a current on the sample to reached target temperature. Visual detection of smoke shall be considered a failure.

Review

The methods above provide the process for electrical and mechanical testing needed on aircraft wires to determine wire performance. The next article will cover the environmental tests, conductor, and final product quality checks that are included in the AS4373 test standard.
